BHD Series — Doypack & Shaped Pouch HFFS Machines

The BHD series forms, fills and seals pouches directly from roll film. All product-contact parts are 316L stainless steel for GMP compliance, and every model is available with servo auger fillers, volumetric cups, multi-head weighers, piston pumps, tablet counters, laminar flow hoods (Class 100/1000), UV/H₂O₂ sterilization and CIP/SIP cleaning.

Models

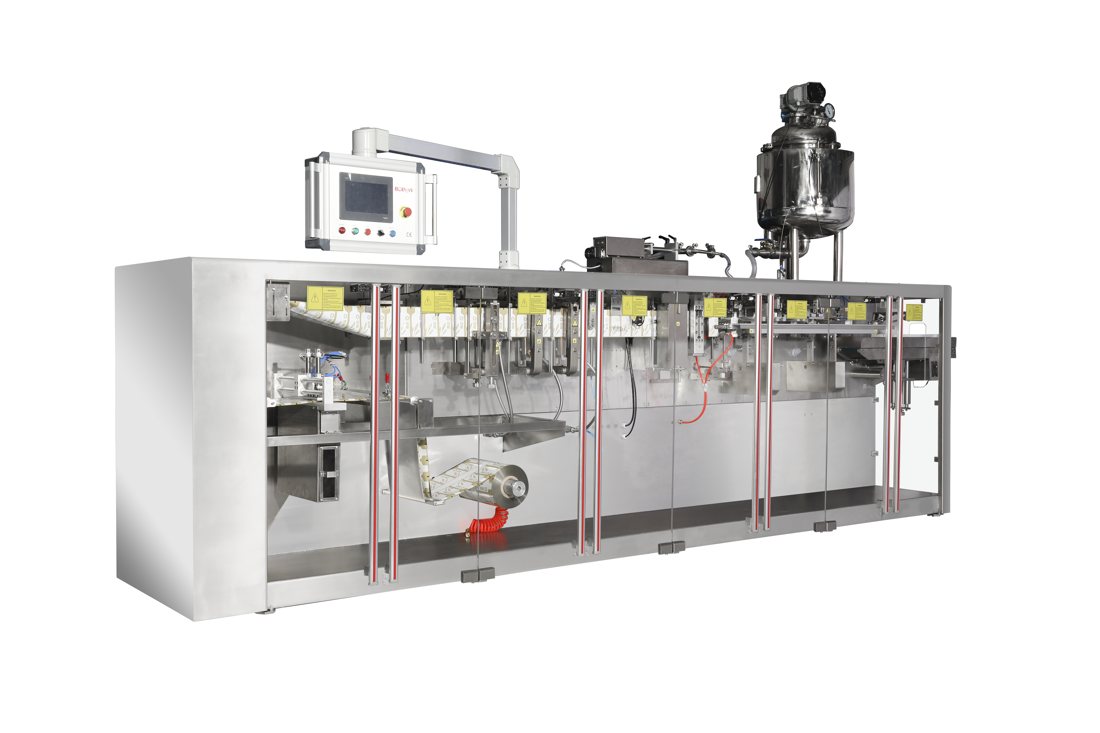

BHD-130S

China’s pioneer shaped-doypack machine, developed for nutritional and pharmaceutical liquids. Widely used for supplements, snacks, beverages, pet food, sauces and seasonings.

60–130 mm × 80–190 mm350 ml30–45 ppmDoypack, Shaped Sachet

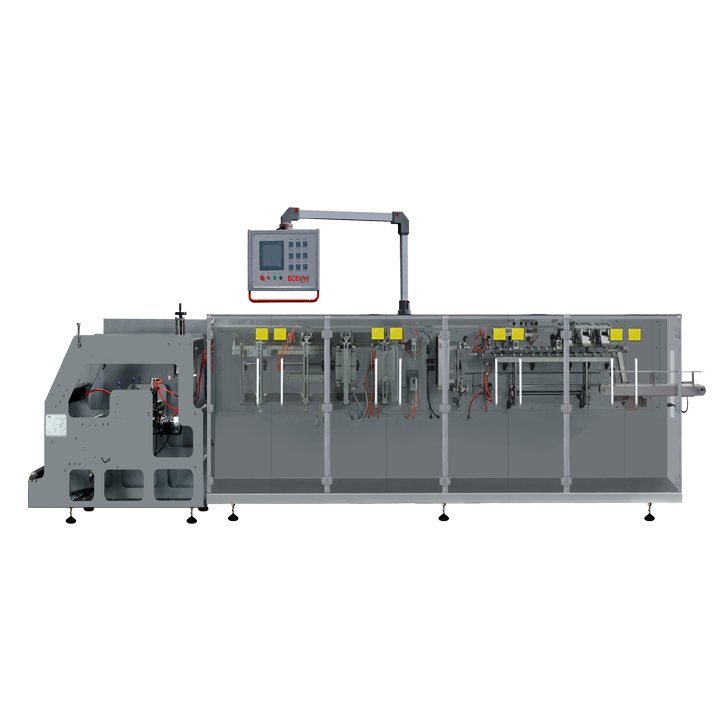

BHD-180S/SZ/SC

Maximum-flexibility HFFS producing stand-up pouches and flat bags on one line. 316L product path, certified CE / ISO / UL / CSA.

90–180 mm × 110–250 mm1,000 ml40–60 ppmDoypack, Zipper, Spout, Shaped, Hanging hole

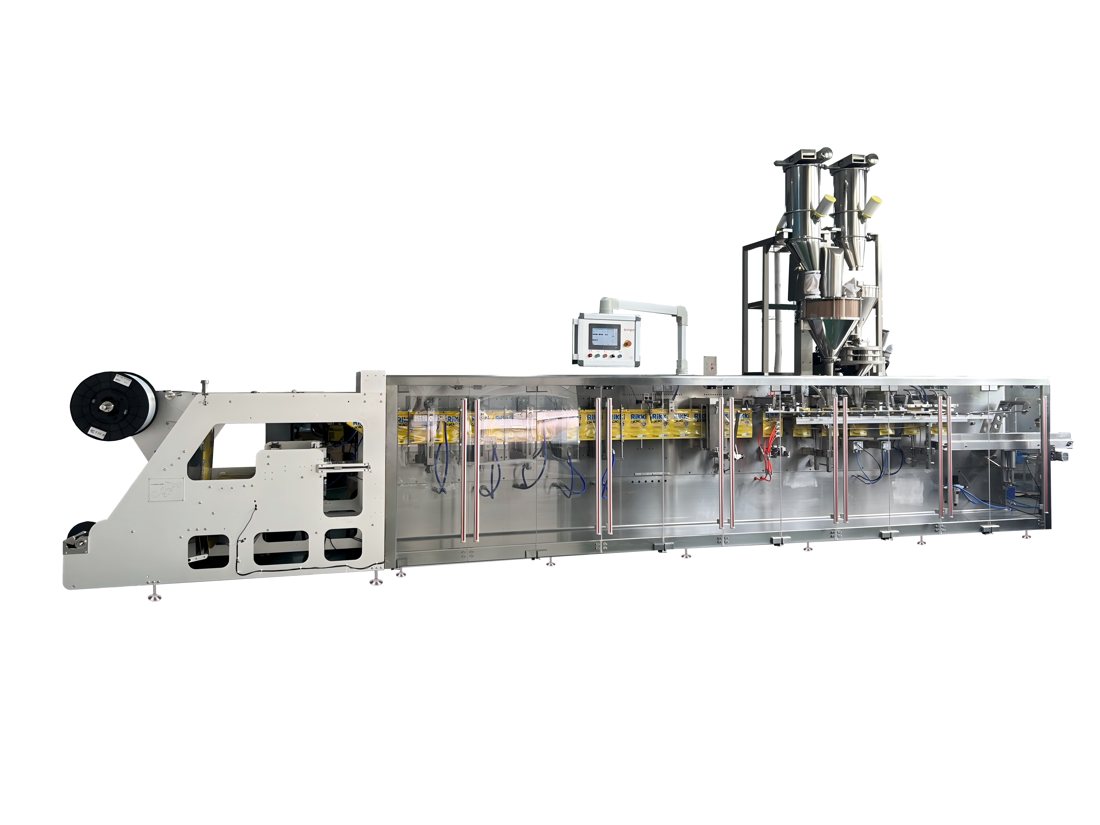

BHD-240S/SZ/SC

High-capacity model up to 2,000 ml — detergent and refill packs, large-format food and beverage pouches.

100–240 mm × 120–320 mm2,000 ml40–60 ppmDoypack, Zipper, Spout, Shaped, Hanging hole

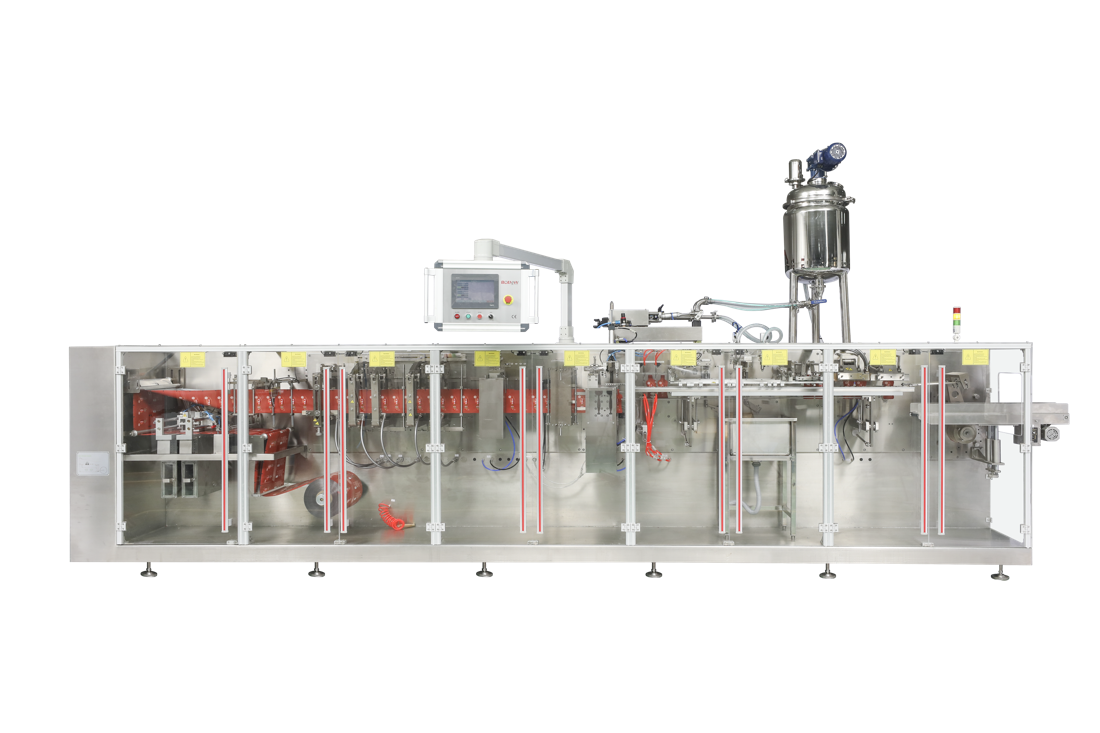

BHD-240DS/DSZ/DSC

Dual-station design doubles output for energy gels, ketchup and other liquid/viscous products.

80–120 mm × 120–250 mm300 ml70–90 ppmDoypack, Zipper, Spout

BHD-280DS/DSZ/DSC

Dual-lane HFFS running doypacks and flat pouches on a single line — juices, baby food, condiments, jams and gels at up to 100 ppm.

90–140 mm × 110–250 mm500 ml80–100 ppmDoypack, Zipper, Spout

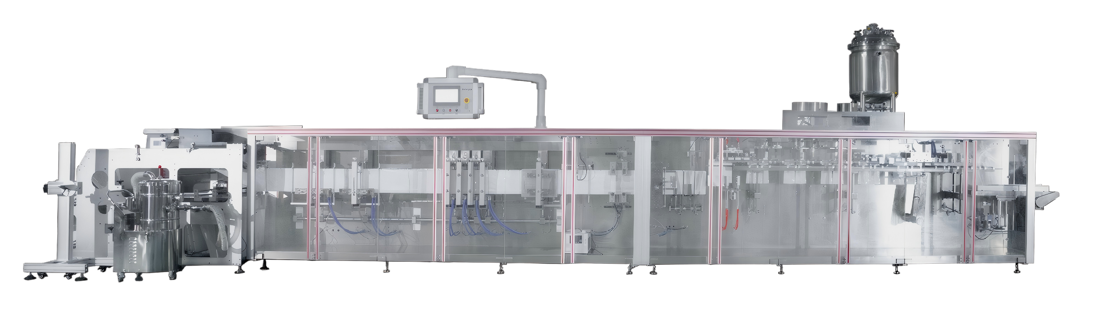

BHD-360DS/DSZ/DSC

Flagship dual-lane system to 900 ml with smart automation, for turnkey lines meeting European and American standards.

90–180 mm × 110–250 mm900 ml80–100 ppmDoypack, Zipper, Spout
